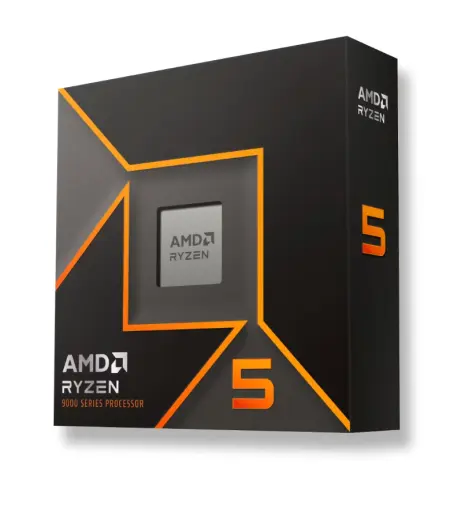

AMD Ryzen 5 9600X Processor
- The AMD Ryzen 5 9600X is a 6-core, 12-thread "Granite Ridge" (Zen 5) desktop processor for the AM5 socket, offering strong gaming and productivity performance with integrated Radeon graphics, supporting PCIe 5.0, and featuring a 65W TDP, making it a power-efficient yet capable choice.
Detail
The AMD Ryzen 5 9600X is a 6-core, 12-thread "Granite Ridge" (Zen 5) desktop processor for the AM5 socket, offering strong gaming and productivity performance with integrated Radeon graphics, supporting PCIe 5.0, and featuring a 65W TDP, making it a power-efficient yet capable choice.
Key Specifications:
Cores/Threads: 6 Cores / 12 Threads
Architecture: Zen 5 (Granite Ridge)
Socket: AM5
Base Clock: 3.9 GHz
Max Boost Clock: Up to 5.4 GHz
Cache: 6MB L2 + 32MB L3 (Total 38MB)
TDP: 65W
Integrated Graphics: AMD Radeon Graphics
Process Node: TSMC 4nm (CPU Cores)
Memory Support: DDR5 (up to 192GB)
PCIe Support: PCIe 5.0
Full Technical Specifications:
- Name
- AMD Ryzen™ 5 9600X
- Family
- Ryzen
- Series
- Ryzen 9000 Series
- Form Factor
- Desktops, Boxed Processor
- Market Segment
- Enthusiast Desktop
- AMD PRO Technologies
- No
- Regional Availability
- Global
- Former Codename
- Granite Ridge AM5
- Processor Architecture
- Zen 5
- # of CPU Cores
- 6
- Multithreading (SMT)
- Yes
- # of Threads
- 12
- Max. Boost Clock
- Up to 5.4 GHz
- Base Clock
- 3.9 GHz
- L1 Cache
- 480 KB
- L2 Cache
- 6 MB
- L3 Cache
- 32 MB
- Default TDP
- 65W
- Processor Technology for CPU Cores
- TSMC 4nm FinFET
- Processor Technology for I/O Die
- TSMC 6nm FinFET
- Package Die Count
- 2
- Unlocked for Overclocking
- Yes
- AMD EXPO™ Memory Overclocking Technology
- Yes
- Precision Boost Overdrive
- Yes
- Curve Optimizer Voltage Offsets
- Yes
- AMD Ryzen™ Master Support
- Yes
- CPU Socket
- AM5
- Supporting Chipsets
- A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
- CPU Boost Technology
- Precision Boost 2
- Instruction Set
- x86-64
- Supported Extensions
- AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
- Thermal Solution (PIB)
- Not Included
- Recommended Cooler
- Premium air cooler recommended for optimal performance
- Max. Operating Temperature (Tjmax)
- 95°C
- Launch Date
- 08/08/2024
- *OS Support
- Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
- Native USB 3.2 Gen 2 (10Gbps)
- 4
- Native USB 2.0 (480Mbps)
- 1
- PCI Express® Version
- PCIe® 5.0
- Native PCIe® Lanes (Total/Usable)
- 28 , 24
- Additional Usable PCIe Lanes from Motherboard
- X870E8x Gen4X8704x Gen4X670E12x Gen4X67012x Gen4B650E8x Gen4B6508x Gen4
- NVMe Support
- Boot , RAID0 , RAID1 , RAID5 , RAID10
- System Memory Type
- DDR5
- Memory Channels
- 2
- Max. Memory
- 192 GB
- System Memory Subtype
- UDIMM
- Max Memory Speed
- 2x1RDDR5-56002x2RDDR5-56004x1RDDR5-36004x2RDDR5-3600
- ECC Support
- Yes (Requires mobo support)
- Graphics Model
- AMD Radeon™ Graphics
- Graphics Core Count
- 2
- Graphics Frequency
- 2200 MHz
- USB Type-C® DisplayPort™ Alternate Mode
- Yes
- Product ID Boxed
- 100-100001405WOF
- Product ID Tray
- 100-000001405
- Supported Technologies
- AMD EXPO™ Technology , AMD Ryzen™ Technologies
