Detail

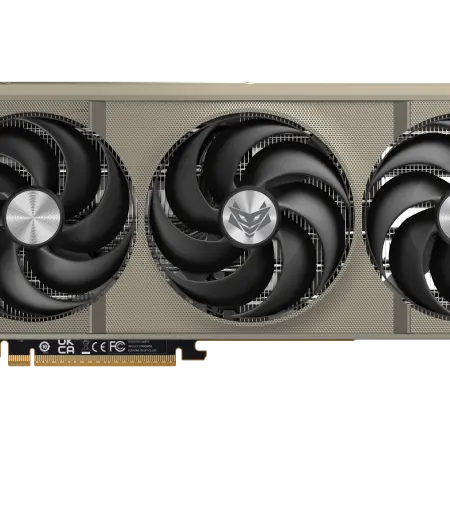

The Sapphire NITRO+ AMD Radeon™ RX 9070 XT OC GPU is built for uncompromising 4K gaming and next-generation workloads. Powered by AMD RDNA™ 4 architecture, this overclocked graphics card delivers exceptional performance, advanced ray tracing, and AI-accelerated features for smooth, immersive gameplay. Its premium Tri-X cooling system, reinforced metal frame, and high-end power delivery ensure stable operation even under heavy loads. With support for DisplayPort™ 2.1a, HDMI®, and cutting-edge AMD software technologies, the Sapphire NITRO+ RX 9070 XT OC is designed for enthusiasts who demand both raw power and refined engineering.

• GPU: Boost Clock: Up to 3060 MHz
• GPU: Game Clock: Up to 2520 MHz
• Memory:   16GB/256 bit DDR6. 20 Gbps Effective
• Stream Processors: 4096
• AMD RDNA™ 4 Architecture
• Ray Accelerator: 64

Full Technical Specifications

General

• GPU: AMD Radeon™ RX 9070 XT

• Architecture: AMD RDNA™ 4

• Game Index: 4K

• BIOS Support: UEFI

Clock Speeds

• Boost Clock: Up to 3060 MHz

• Game Clock: Up to 2520 MHz

Processing

• Stream Processors: 4096

• Compute Units: 64 CUs (3rd Gen Ray Tracing + 2nd Gen AI Accelerators)

• Ray Accelerators: 64

• AI Accelerators: 128

• Infinity Cache: 64MB

Memory

• Memory Size: 16GB

• Memory Type: GDDR6

• Memory Bus: 256-bit

• Memory Clock: 20 Gbps Effective

Display Support

• Maximum Displays: Up to 4

• HDMI® Resolution: Up to 7680 × 4320

• DisplayPort™ 2.1a Resolution: Up to 7680 × 4320

Outputs

• HDMI®: 2 × HDMI®

• DisplayPort™: 2 × DisplayPort™ 2.1a

Interface

• Bus Interface: PCI-Express 5.0 x16

Cooling & Design

• Cooler Type: Tri-X Cooling

• Cooling Features:

  • AeroCurve Fan Blade

  • Free Flow Design

  • Integrated Cooling Module

  • Optimized Composite Heatpipes

  • Two-Ball Bearing Fans

  • Honeywell PTM7950 Thermal Interface Material (TIM)

• Frame & Build:

  • Cold Rolled Steel Frame

  • High TG Copper PCB

  • Metal Backplate

  • FrameDefense Protection

Power & Electrical

• Typical Board Power: 330W

• Power Connector: 12V-2x6 (H++)

  • 3 × 8-pin PCIe power adapter included

• Power Design: Premium 16-Phase Digital Power

• Protection: Fuse Protection

Sapphire Exclusive Features

• Quick Connect MagniPlate

• STEALTH Hidden Power Cable

• ARGB Light Bar

• Fan Quick Connect

• Intelligent Fan Control

• Precision Fan Control

• Performance vs. Efficiency Quicksets

• Glow!

• Fan Check

• TriXX Boost

• External RGB LED Motherboard Synchronization

• TriXX Software Support

AMD Technologies

• AMD HYPR-RX with AFMF 2

• AMD FidelityFX™ Super Resolution 4 with AI Upscaling

• AMD Fluid Motion Frames 2

• AMD Radeon™ Anti-Lag 2

• AMD Radiance Display™ Engine

• AV1 Encode / Decode

• AMD FreeSync™ Technology

• Microsoft® DirectX® 12 Ultimate

• AMD Noise Suppression

• AMD Software: Adrenalin Edition™

Form Factor & Dimensions

• Form Factor: ATX

• Slot Size: 3.2 Slot

• Dimensions:

  • 330.8 mm (L) × 128.5 mm (W) × 65.68 mm (H)

Operating System Support

• Windows® 10 (64-bit)

• Windows® 11 (64-bit)

• Linux®

System Requirements

• Minimum Power Supply: 850W

• Power Connector Requirement: 12V-2x6 (H++) or included 3 × 8-pin adapter

• Motherboard: PCI Express® x16 slot required

• System Memory:

  • Minimum: 8GB

  • Recommended: 16GB

Accessories Included

• L-Shape Support Bracket

• 3-Pin 5V ARGB Cable

• Magnetic Backplate

• 12V-2x6 (H++) to PCI Express 3 × 8-Pin Power Adapter
